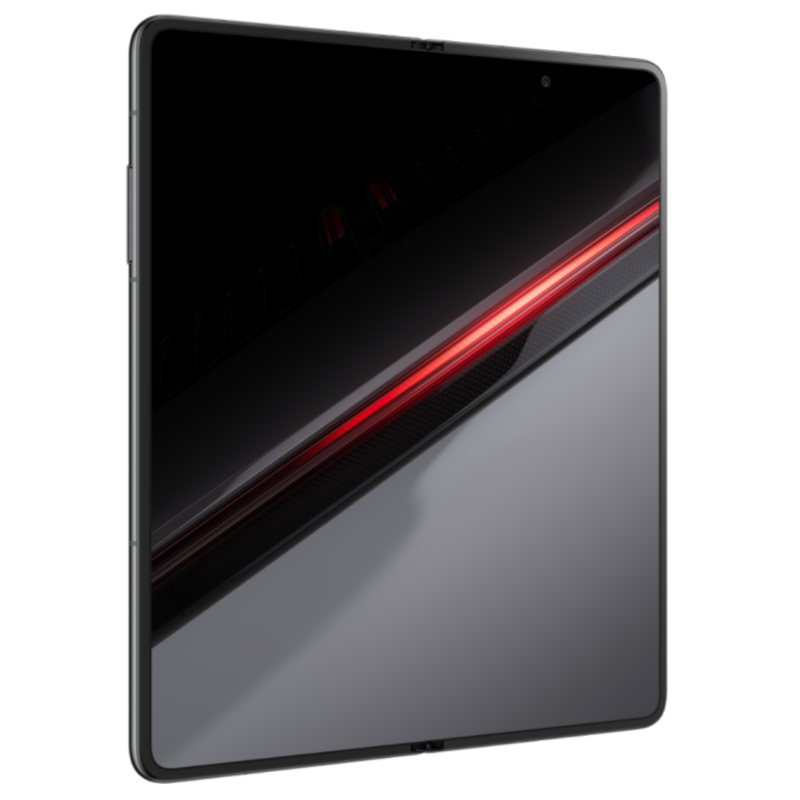

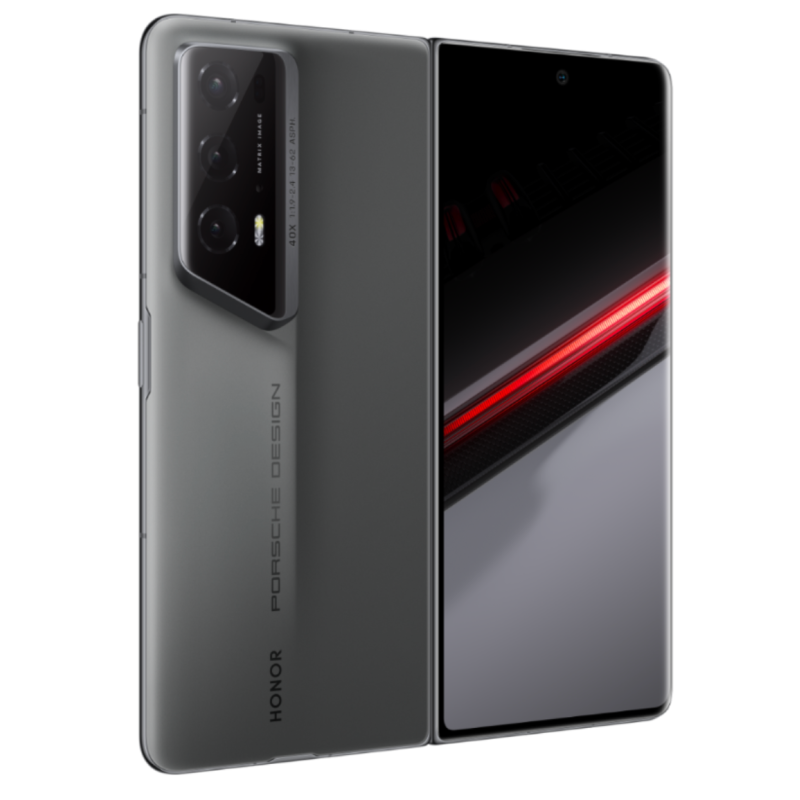

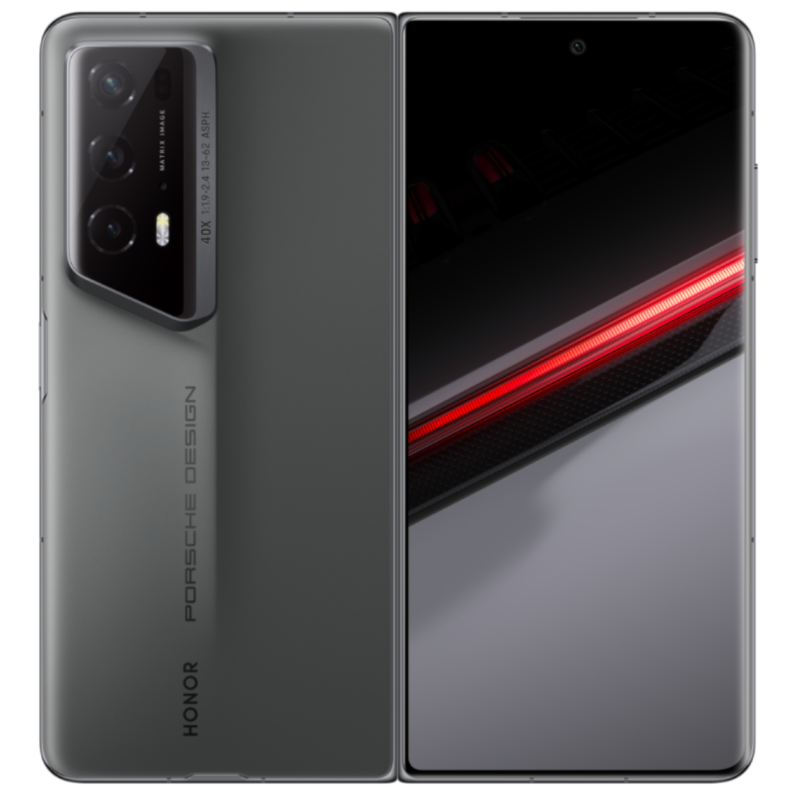

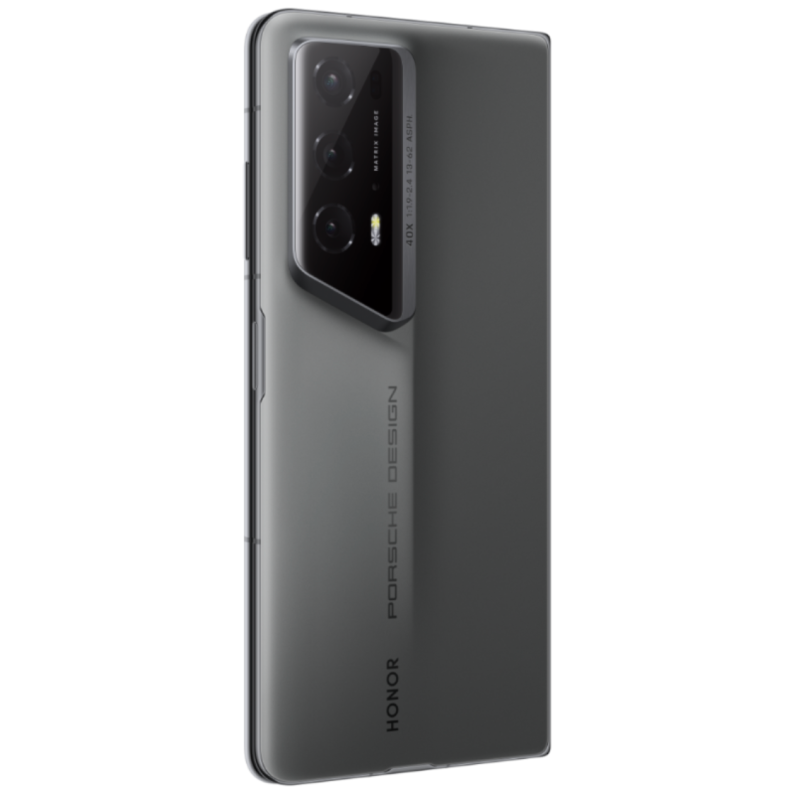

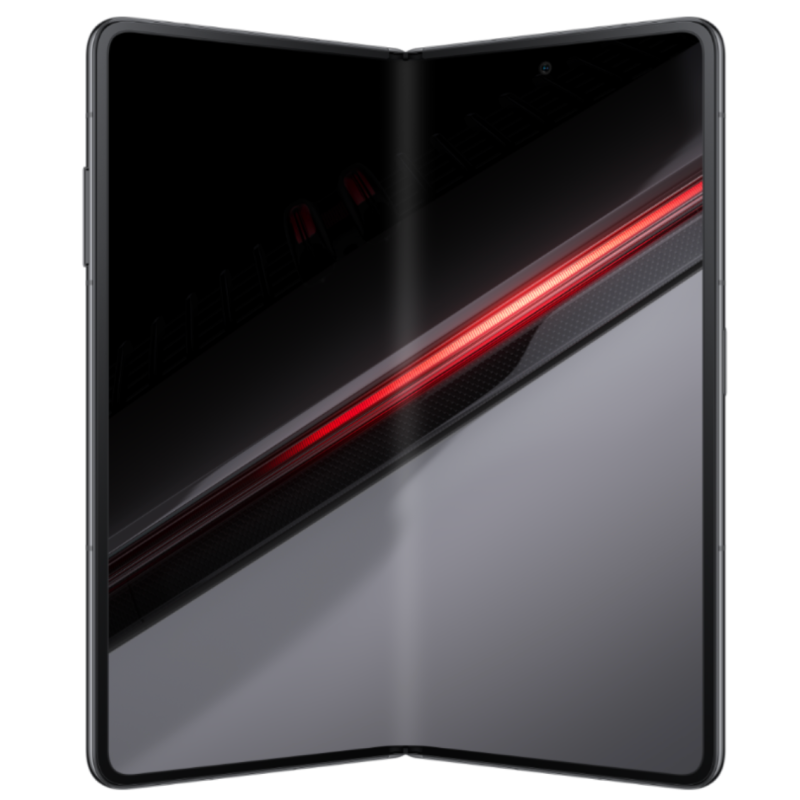

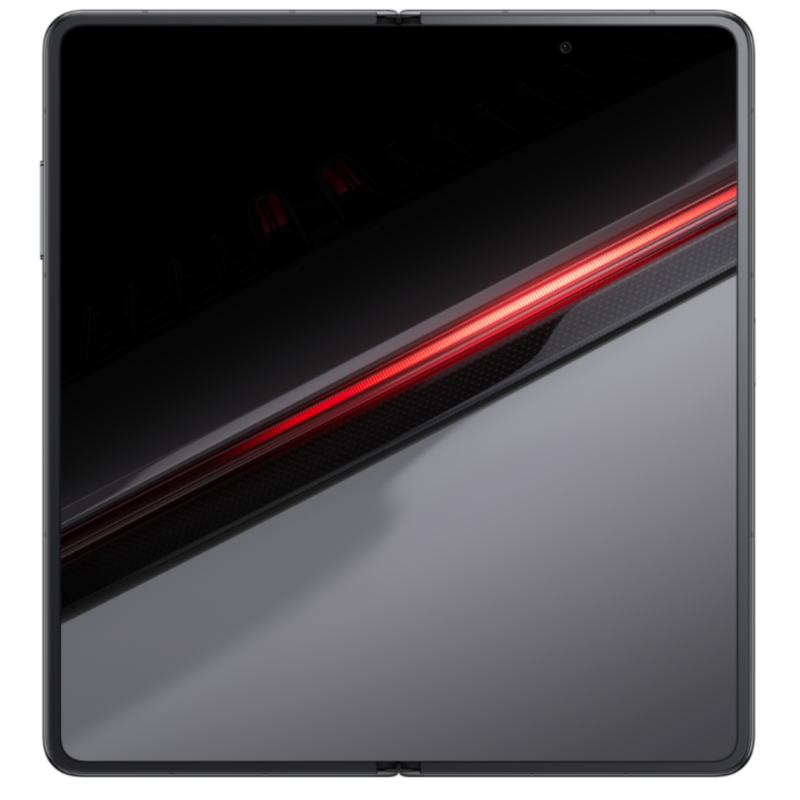

PORSCHE DESIGN | HONOR Magic V2 RSR

*Product images are provided for reference only, please refer to the actual product.

Colors

Agate Grey

Dimensions and Weight

Height

156.7 mm

Width

folded: 74.0 mm

unfolded: 145.4 mm

Depth

folded: 9.9 mm

unfolded: 4.7 mm

Weight

Approx. 234 g (including the battery);

*The actual dimensions and weight may vary depending on the configuration, manufacturing process, and measurement method.

Display

Size

Inner screen: 7.92 inches

External screen: 6.43 inches

*With rounded corners design on the display, the diagonal length of the inner screen and external screen is 7.92 inches and 6.43 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).

Aspect Ratio

Inner screen: 9.78:9

External screen: 20:9

Color

1.07 billion colors, DCI-P3 wide color gamut

Type

Inner screen: foldable OLED, up to 120 Hz refresh rate

External screen: OLED, up to 120 Hz refresh rate

Resolution

Inner screen: 2344x2156 Pixels

External screen: 2376x1060 Pixels

*The resolution measured as a standard rectangle, thus the effective pixels are slightly less.

Processor

CPU Model

Snapdragon 8 Gen 2

CPU Type

Octa-core

CPU Dominant Frequency

1×Cortex-X3 3.19GHz+

2×Cortex-A715 2.8GHz+

2×Cortex-A710 2.8GHz+

3×Cortex-A510 2.0GHz

GPU

Adreno 740

Keyboard Type

Gestures, Three-key navigation, Navigation dock

System

Operating System

MagicOS 7.2 (Based on Android 13)

User Interface

MagicOS 7.2

Memory

16GB+1TB

*The available internal storage may be smaller as part of the internal storage is occupied by software.

Rear Camera

Triple Rear Camera

50MP Wide Camera (f/1.9, OIS)

50MP Ultra Wide Camera (f/2.0)

20MP telephoto Camera (f/2.4, OIS)

*The pixels may vary with different photo and video modes. Please refer to the actual situations.

Video Shooting

Support for 4K (3840×2160 pixels)

*The actual image resolution may vary depending on the video recording mode.

Zoom Mode

40x Digital zoom

*Photos and videos may appear differently in different display modes. Please refer to the actual situation.

Image Resolution

8192×6144 pixels

*The actual image resolution may vary depending on the shooting mode.

Video Resolution

3840×2160 pixels

*The actual image resolution may vary depending on the video recording mode.

Rear Flashlight

Rear single LED flash

Stabilization Mode

EIS+OIS

Front Camera

Front Camera

16MP Wide Camera (f/2.2)

*The pixels may vary with different photo and video modes. Please refer to the actual situations.

Image Resolution

4608×3456 pixels

*The actual image resolution may vary depending on the shooting mode

Video Resolution

3840×2160 pixels

*The actual image resolution may vary depending on the video recording mode.

Video Shooting

Supported 4K (3840×2160 pixels）

*The actual image resolution may vary depending on the video recording mode.

Face Recognition

Supported 2D

Battery

Capacity

5000 mAh (typical value), 4900 mAh (rated value)

Type

Silicon-Carbon

Wired Charging

HONOR 66W SuperCharge

The phone supports up to 11V/6A SuperCharge, compatible with 10V/4A and 5V/2A.

*The supported maximum wired charging power is 66W when going with the original SuperCharge charger. The actual charging power will intelligently change depending on different scenarios.

Standard Charger

HONOR 66W SuperCharge Charger

Cellular Network

Network Standard

Support 5G/4G+/4G/3G/2G

*In Dual SIM version, either card slot can be set to accommodate the primary or secondary SIM card.

*Whether 5G/4G is available depends on the deployment of operators' network and related services.

Data service

5G NR/TD-LTE/FDD-LTE/WCDMA/HSPA+/DC-HSDPA/CDMA1X/EDGE/GPRS, support VoLTE/ViLTE

*The network and frequency band may vary with regions.The actual situations depend on local operators and your location.

*VoLTE/ViLTE depends on the support of operators' network and establishment of related services.

SIM Card

SIM Card 1

Nano SIM card

SIM Card 2

Nano SIM card

Internet Access on the Secondary SIM Card

Supported

*Blind mating is supported,which allows you to configure any card as the primary SIM card.

*Open"Switch data connection during calls" in "Dual SIM settings" to enable secondary SIM card Internet accessibility during calls.

*VoLTE call via the secondary SIM card depends on the carrier network.

Connectivity and Location

Wi-Fi Protocols

802.11 a/b/g/n/ac/ax/be

*The 802.11 be feature require OTA upgrade, and needs to be used with a Wi-Fi 7 router.

Wi-Fi Frequency

2.4GHz and 5GHz

Wi-Fi Hotspot

Supported

Wi-Fi Direct

Supported

Bluetooth

BT5.3,Support BLE,SBC,AAC,

LDAC,APTX,APTX HD

Infrared Remote Control

Supported

PC Data Sync

Supported

Video Call

Supported (operator and third-party software)

*The availability of this function depends on the network operators in different countries or regions. Contact your network operator for details.

OTG

Supported (maximum output current 1A/5V during reverse power supply)

Positioning

Support GPS(L1+L5) /AGPS/GLONASS/BeiDou(B1I+B1C+B2a)/Galileo(E1 + E5a)

Network-Based Positioning

Supported

Wi-Fi-Based Positioning

Supported

Sensors

Gravity Sensor

Supported

Infrared Sensor

Supported

Fingerprint Sensor

Supported

Gyroscope

Supported

Compass

Supported

NFC

Support Reader/Writer Mode,Card Emulation Mode (SIM*, HCE)

*Only SIM1 support.

Ambient Light Sensor

Supported

Proximity Sensor

Supported

Others

Video

3gp/mp4

Audio

mp3/mp4/3gp/ogg/amr/aac/flac/

wav

Sound Effect

DTS:X® Ultra

Stereo Amplifier

Supported

USB

USB Type-C, USB 3.1 GEN1

Earjack

USB Type-C

*Supports Type-C digital headset.

In the Box

1. Phone(Built-in battery) x 1

2. HONOR SuperCharge Charger x 1

3. USB Type-C Cable x 2

4. Quick Start Guide x 1

5. Eject Tool x 1

6. Inner screen protective film (Attached on the phone before delivery) x 1

7. External screen protective film (Attached on the phone before delivery) x 1

8. Warranty Card x 1

9. HONOR Magic-Pen x 1

10. HONOR Magic-Pen Box x 1

11. HONOR Magic-Pen Quick Start Guide x 1

12. Aramid Case x 1

* Dependent on market

Notes:

• Data comes from the HONOR lab, The wear resistance is tested and compared before and after the anti-scratch Coating process. The drop-resistant level is tested by comparing the second-generation nanocrystal glass with ordinary glass on carriers of the same weight. As a precision electronic product, a mobile phone is still at risk of damage if dropped. Please take care to avoid drops and collisions.
• Data comes from the HONOR lab, The peak brightness of external screen is 2500nit, and the peak brightness of inner screen is 1600nit.
• PORSCHE DESIGN HONOR Magic V2 RSR is equipped with 3840Hz PWM dimming technology, which is TÜV Rheinland flicker-free certified and reaches the risk-free dimming level. The test standard of TÜV Rheinland's flicker-free certification refers to the IEEE (Institute of Electrical and Electronics Engineers) Std 1789-2015 standard for the definition of the correlation between the flicker risk level and the flicker frequency: when the dimming frequency is higher than 3125Hz, it reaches the flicker-free hazard level. The phone is not medical equipment and is not available for treatment.
• With a round-corner design on the display, the diagonal length of the inner screen is 7.92 inches, and the diagonal length of the external screen is 6.43 inches when measured as a standard rectangle (the actual field of view is slightly smaller on both screens).
• The resolution is measured as a standard rectangle, so the effective pixels are slightly less.
• The screen supports a maximum refresh rate of 120Hz. The actual refresh rate may vary depending on different application interfaces and gaming images. Please refer to the actual experience.
• Data comes from the HONOR lab. The "Millimeter Era" specifically refers to a foldable phone with a thickness of less than 1 centimeter when folded. 9.9mm refers to the thickness in the folded state, while 4.7mm refers to the thickness in the unfolded state. The overall thickness does not include the inner and outer screen protective films and the raised part of the camera, The actual data may vary depending on configurations, manufacturing processes and measurement methods. Please refer to the actual device.
• Data comes from the HONOR lab. 234g refers to the weight excluding the inner protective film. The actual data may vary depending on configurations, manufacturing processes and measurement methods. Please refer to the actual device.
• The typical battery capacity is 5000mAh, and the rated battery capacity is 4900mAh.
• The battery life data comes from HONOR lab. The actual battery life may vary depending on individual differences, user habits, and environmental factors. Please refer to the actual experience.
• Only the shaft cover part of the hinge is made of titanium alloy.
• Networks and signal frequency bands may vary depending on locations and local suppliers. Please refer to the actual situation.
• After being folded for 12 hours, the product can maintain the hovering state between 60°~110°. The actual hovering angle may vary depending on the environment, time of usage, and production batches. Please refer to the actual experience. This feature is only available for some apps, with varied effects on different apps. More apps are being upgraded and adapted. Please refer to the official information.
• Please enable this feature in the folded mode. When enabled, the volume will be automatically adjusted according to the environment. AI Privacy Call works at volume 8 (out of 10) and below. This feature reduces call sound leakage, but is not completely soundproof. Sound leakage is related to the noise level of the environment. Please refer to the actual experience.
• Photos and videos may appear differently in different display modes. Please refer to the actual situation. The 50MP require entering the "HIGH-RES" photo mode to experience.
• The 20MP telephoto camera supports up to 40x digital zoom.
• AI Motion Sensing Capture supports intelligent high-speed shutter in sports scenes, such as jumping, running, badminton, and table tennis, motions of cats and dogs, people smiling etc. AI will help you select the best picture within 1.5 seconds before and after the shutter-pressing. In the above-mentioned scenarios, AI Motion Sensing Capture will also automatically capture the most exciting moments missed. The specific implementation effect varies depending on different scenarios. This feature can be enabled in Camera Settings->Smart Capture-> Auto Capture.

• The 7-day unconditional return is supported without any personal damage or applying a protector on your own, as the phone comes with an original HD screen protector for the inner screen. Please call HONOR service hotline or visit an HONOR Authorized Service Center for details.
• This product is a foldable phone with a flexible screen. Please take note of the following: Please do not press the inner screen with sharp objects like pens and nails. Please keep the screen away from cards, coins, keys and other foreign objects when folding the phone. The phone comes with a dedicated screen protector for the inner screen. To avoid damaging the screen and affecting your warranty coverage, please do not remove this protector, or apply a non-official protector on your own. To have the protector replaced, please call HONOR service hotline or visit an HONOR Authorized Service Center. Since the phone contains intricate components, please avoid exposing your phone to liquids and sand, etc. Since the phone contains magnets, please keep it away from credit cards, implanted medical devices, and other devices that may be affected by magnets. If you are using an implanted medical device, please use the phone under the guidance of a doctor.
• There is a slight sound during opening and closing, all of which are normal, please use it as usual.
• This product complies with [HDR10+ Mobile Display Device] [Version 1.0.2]. The HDR10+ logo is a trademark or registered trademark of HDR10+ ™ Technologies, LLC in the United States and other countries.
• The pixels of photos and videos may vary depending on different modes. Please refer to the actual situation.
• The product images and screen content on the above pages are for illustration purposes only. The actual product (including but not limited to appearance, color, and size) and screen display content (including but not limited to background, UI, and images) may vary slightly. Please refer to your actual product.
• The data on the above pages are theoretical values, which are obtained from HONOR's internal labs under specific test environments (please refer to each specific description). Actual use may vary slightly due to individual differences in products, software versions, use conditions and environmental factors. Please refer to your actual usage.
• Due to the real-time changes of product batches and production and supply factors, in order to provide accurate product information, specifications, and product characteristics as much as possible, HONOR may adjust and revise the text descriptions, image effects, etc. on the above pages in real time to match the actual product performance, specifications, indices, parts and other information.
• If there is a need to make such changes and adjustments for above information, no special notice will be given.
